- 3rd Generation, Tiny, Wireless Smart Sensors
- TinyOS - Unprecedented Communications and Processing
- >1yr Battery Life on AA Batteries (Using Sleep Modes)
- Wireless Communications with Every Node as Router Capability
- 433, 868/916, or 310 MHz Multi-Channel Radio Transceiver
- Light, Temperature, RH, Barometric Pressure, Acceleration/Seismic, Acoustic, Magnetic, GPS, and other Sensors available
- NEW! Indoor Injection Molded Housing is available for MICA2 and MTS300/MTS310 Combination. View Picture and Flash Animation of Housing
|
| |
|

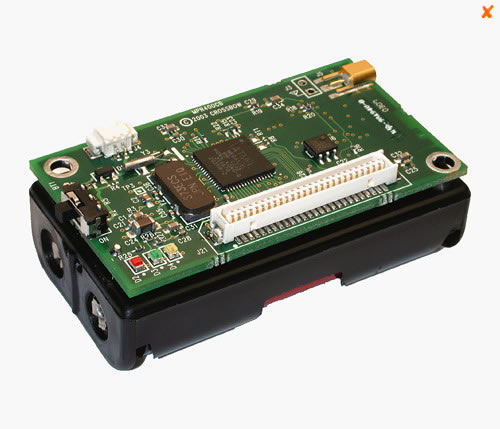

The MPR400CB is based on the Atmel ATmega128L. The ATmega128L is a low-power microcontroller which runs TOS from its internal flash memory. Using TOS, a single processor board (MPR400CB) can be configured to run your sensor application/processing and the network/radio communications stack simultaneously. The MICA2 51-pin expansion connector supports Analog Inputs, Digital I/O, I2C, SPI and UART interfaces. These interfaces make it easy to connect to a wide variety of external peripherals.
|
|
Applications |
|
- Wireless Sensor Networks
- Security, Surveillance, and Force Protection
- Environmental Monitoring
- Large Scale Wireless Networks (1000+ points)
- Distributed Computing Platform
|
|
|
| |
|
| |
|
|
|
