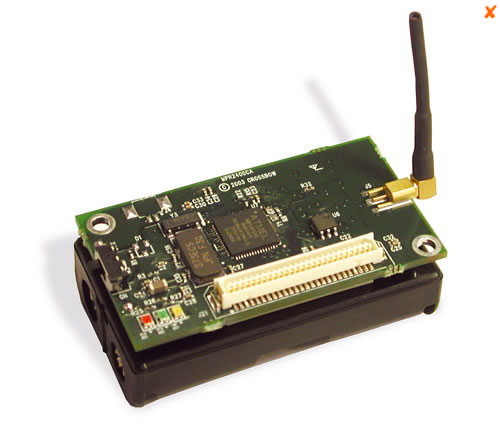

MICAz ZigBee Series
(MPR2400)

• 2.4 GHz, IEEE 802.15.4 compliant
• Tiny, Wireless Measurement System
• FCC Certified
• Designed Specifically for Deeply Embedded Sensor Networks
• 250 kbps, High Data Rate Radio
• Wireless Communications with Every Node as Router Capability
• Expansion Connector for Light, Temperature, RH, Barometric Pressure, Acceleration/Seismic, Acoustic, Magnetic, and other Crossbow Sensor Boards

Using TinyOS, a single processor board can be configured to run your sensor application/processing and the mesh networking radio stack simultaneously. The MICAz (MPR2400CA) IEEE 802.15.4 radio offers both high speed (250 kbps) and hardware security (AES-128). The MICAz 51-pin expansion connector supports Analog Inputs, Digital I/O, I2C, SPI and UART interfaces. These interfaces make it easy to connect to a wide variety of external peripherals.



• Indoor Building Monitoring and Security
• Acoustic, Video, Vibration, and Other High Speed Sensor Data
• Large Scale Sensor Networks (1000+ Points)
• ZigBee Compliant Systems and Sensors
