Imote2

• PXA271 XScale® Processor at 13–416MHz
• Wireless MMX DSP Coprocessor
• 256kB SRAM, 32MB FLASH, 32MB SDRAM
• Integrated 802.15.4 Radio
• Multi-color Status Indicator LED # Integrated 2.4GHz Antenna, Optional External SMA Connector
• USB Client With On-board mini-B
• Rich set of Standard I/O: 3xUART, 2xSPI, I2C, SDIO, GPIOs
• Application Specific I/O: I2S, AC97, Camera Chip Interface, JTAG

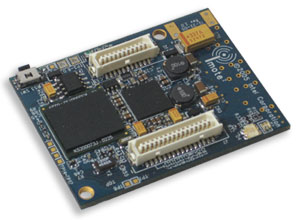

The Imote2 is an advanced wireless sensor node platform. It is built around the low power PXA271 XScale processor and integrates an 802.15.4 radio (CC2420) with a built-in 2.4GHz antenna, and it provides an extension board interfaces. The Imote2 is a modular stackable platform and can be expanded with expansion boards to customize the system to a specific application. Through the extension board connectors’ sensor boards can provide specific analog or digital sensor interfaces. A battery board is provided to supply system power.
